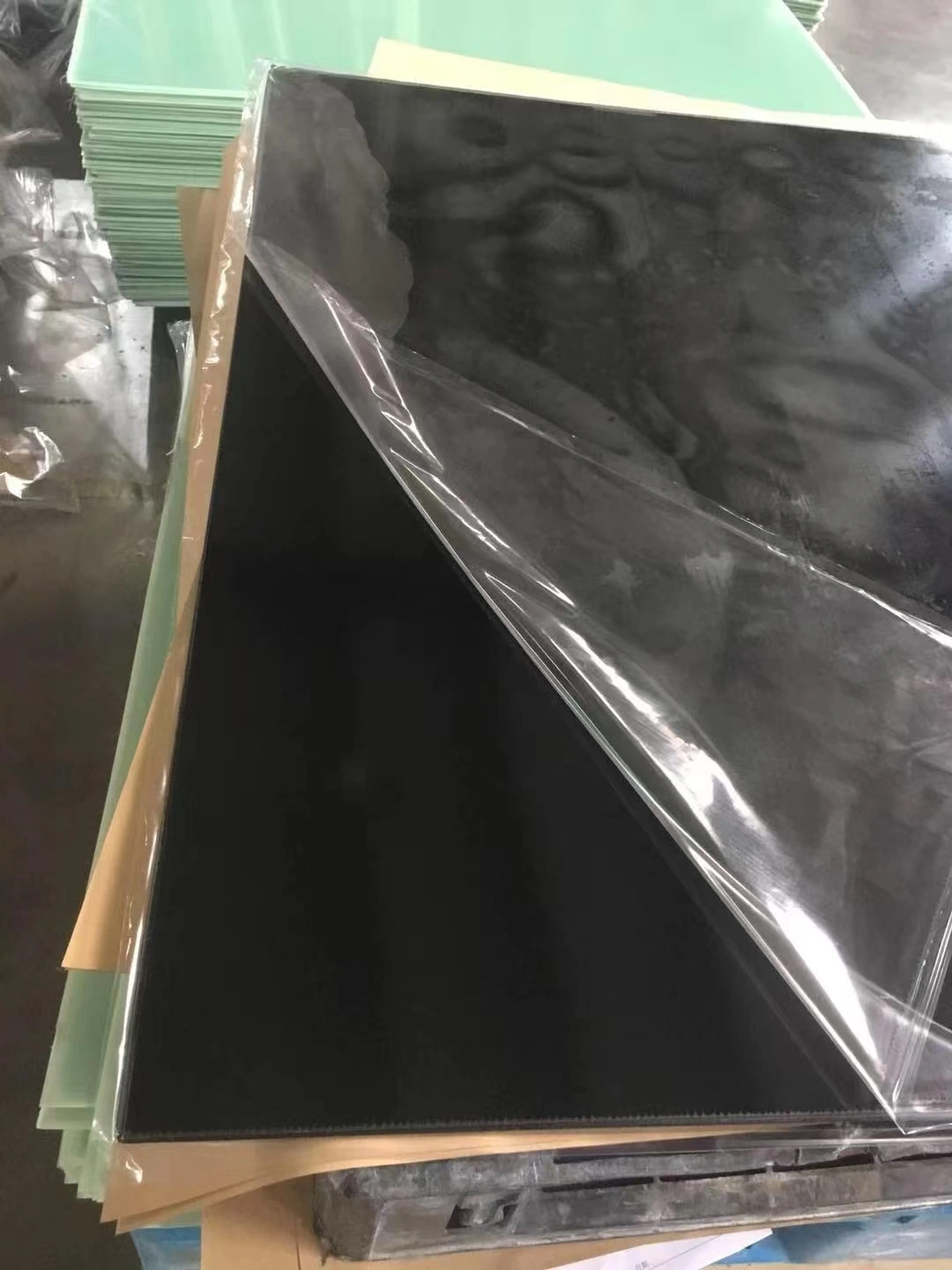

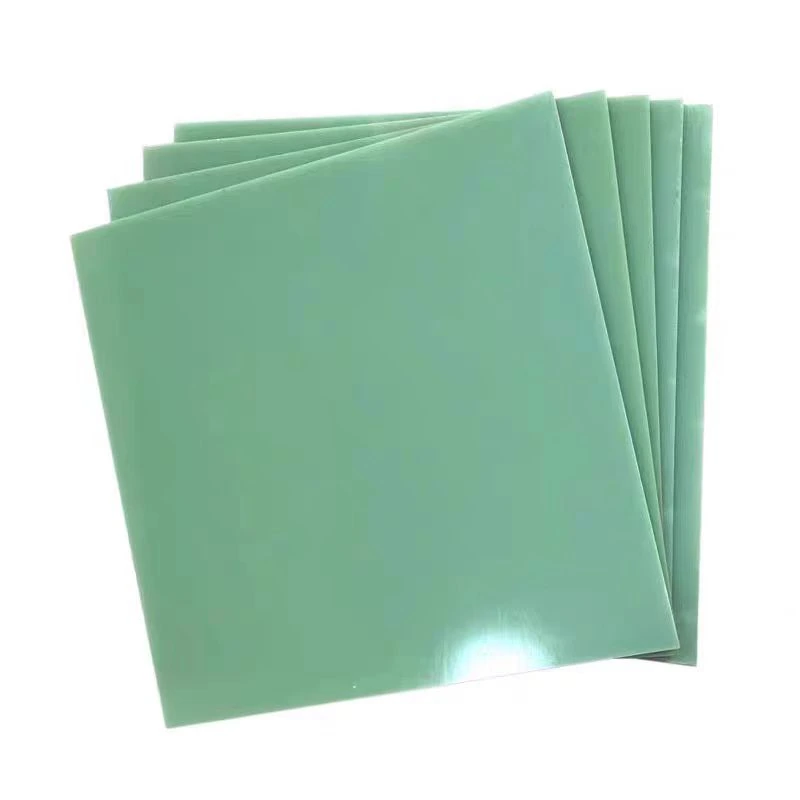

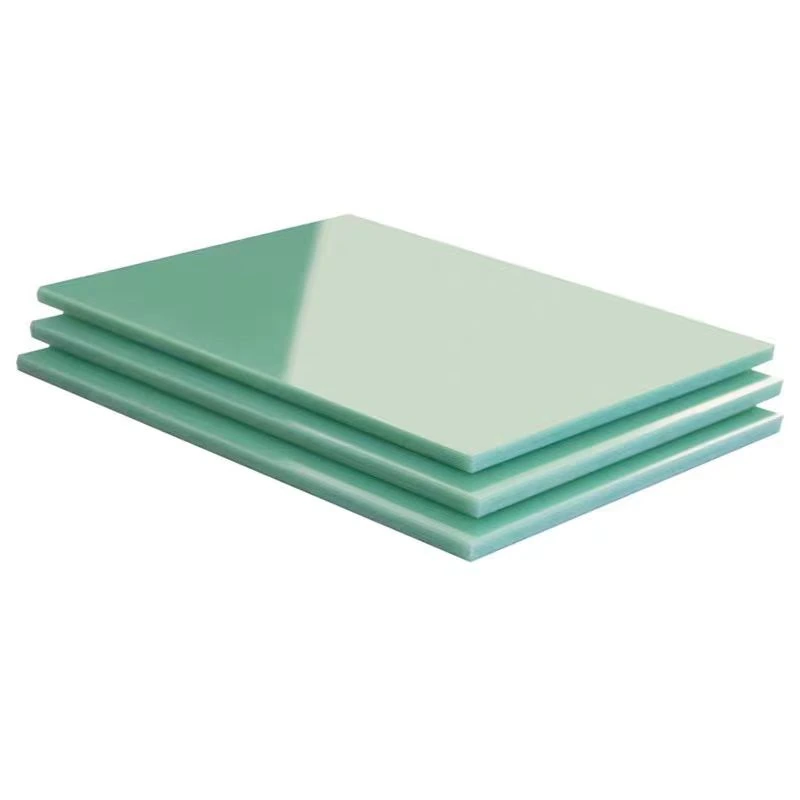

FR-4 laminate board — material photographView larger +

01 / 03Product view

PRODUCT PHOTOGRAPHSJW-10

Boards & sheets / JW-10

FR-4 laminate board

Choose a material designation and thickness, then share the sheet size or a dimensioned drawing for the component you need.

Catalogue code
JW-10
Thickness
0.30–100 mm
Reference MOQ
500 kg
Request product details

Catalogue data is a starting point. Confirm the exact grade, dimensions and commercial terms with Leo.

01 / MATERIAL OVERVIEW

Know the material.
Confirm the details.

The supplied catalogue lists FR-4 laminate board under code JW-10. Choose a material designation and thickness, then share the sheet size or a dimensioned drawing for the component you need.

Application review

Tell Leo where the material will be used and share the electrical, thermal and mechanical requirements. Product names and dimensions alone do not establish suitability.

02 / CATALOGUE SPECIFICATIONS

The dimensions at a glance.

Catalogue reference specifications for FR-4 laminate board
Product designationFR-4 laminate board
Catalogue codeJW-10
Thickness0.30–100 mm
Width / dimensionsCustom width
LengthCustom length
Reference MOQ500 kg

Ranges and custom options are reproduced from the supplied catalogue and do not imply current stock or that every size combination is available. Confirm MOQ basis, tolerances and final availability with your quotation.

Supplied insulation materials catalogue, page 2, JW-10.
